Merrychef eikon® e2s

Merrychef eikon® e2s

High Speed, Compact & Versatile

Our highest performing Merrychef with its award-winning front-of-house design is easy to install on a standard counter top, easy to use and delivers high quality results cooking up to 20x faster than a conventional oven. Its versatility to cook, toast, grill and reheat food, delivering high quality, repeatable dishes with every order, from just one compact appliance makes the Merrychef eikon® e2s an excellent return on investment.

The Merrychef eikon® e2s has ground-breaking small cavity (12” x 12”) to oven width 14” ratio and is available in designs to suit your outlet from Classic to Trend red or black as well as in standard or high power options to meet your customer demand. The easyTouch^® icon-driven touchscreen ensures high quality, repeatable results, even for untrained staff, making it ideal for cafes, bars, convenience stores and quick service outlets.

Available as a high powered unit cooking up to 20x faster with a 2000W microwave, 2200W convection and tuned impingement, or standard powered. cooking up to 12x faster with a 1000W microwave, 2200W convection and tuned impingement.

Built-in diagnostic testing

Rapid cooking up to 20 times faster than conventional ovens

12"cavity with a 14" wide footprint

Cool-to-touch exterior

Very easy to clean seam welded cavity with large rounded corners

Convection fan setting, 10–100% in 1% increments

Quiet operation (45.3 dBA in standby mode)

easyTouch®, icon-driven touchscreen user interface

Easy access, front-mounted air filter

USB memory stick data transfer of up to 1024 cooking profiles

Accessory storage on top of the unit

Fits on a 600mm worktop

Rapid cooking, combining three heat technologies (tuned impingement, microwave, convection)

UL certified ventless cooking capabilities through built-in catalytic converter

Exhaust vent at rear of unit

User-definable temperature bandwith

Best in class energy efficiency (0.7 kWh in standby mode)

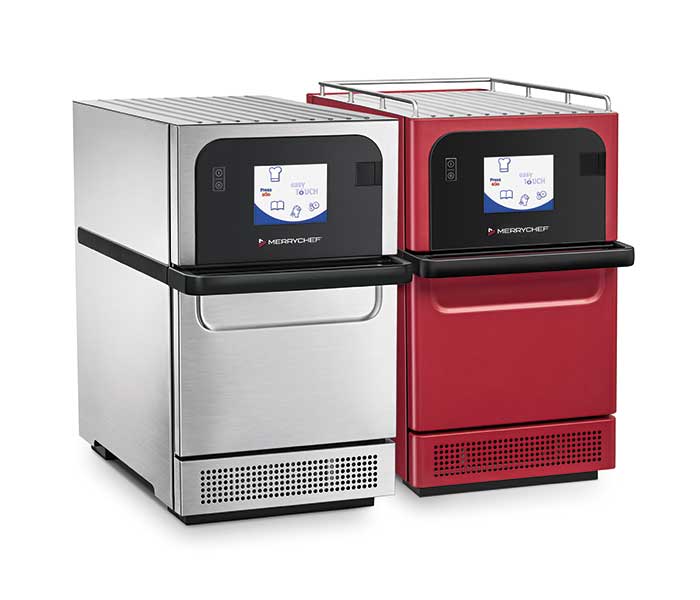

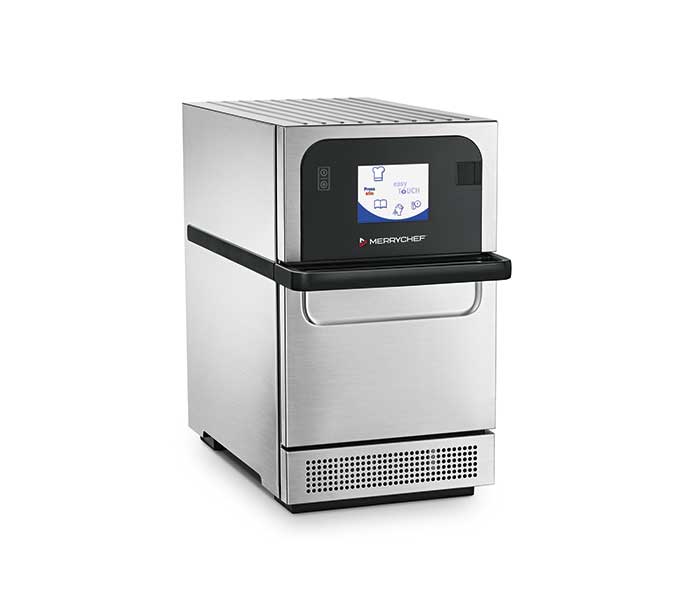

eikon® e2s Classic

W x D x H	14" x 233/8" x 243/8" 35.6 cm x 59.4 cm x 61.9 cm
Weight	133.8 lb 60.7 kg
Power Input Type	Electric
Primary Power Input	230 V x 50 Hz x 1 PH
Certifications

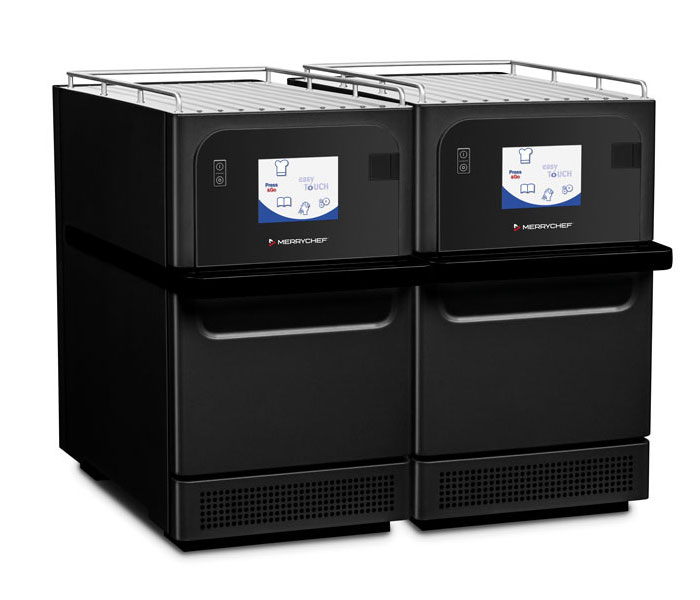

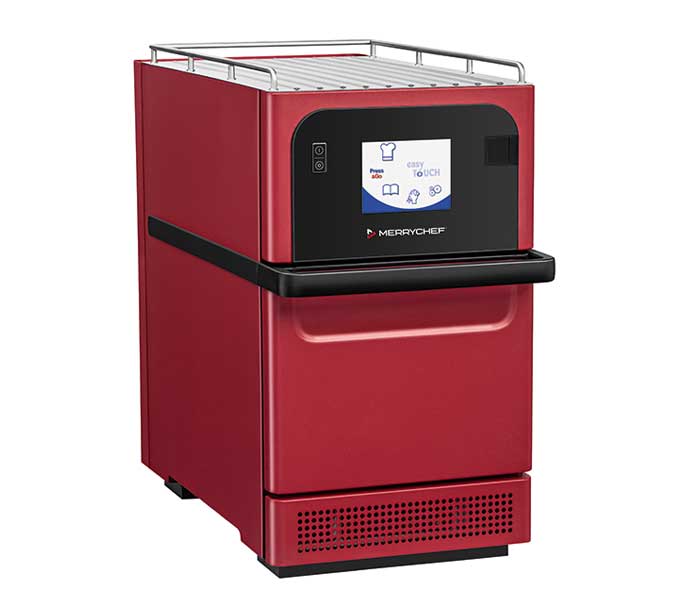

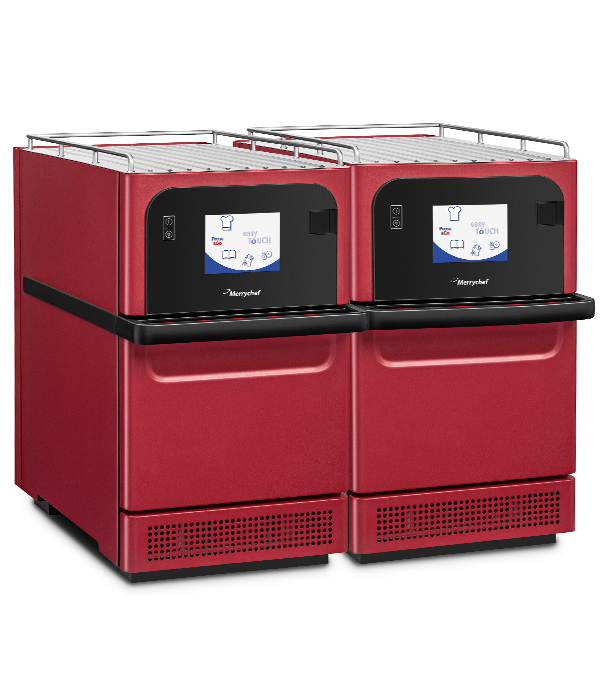

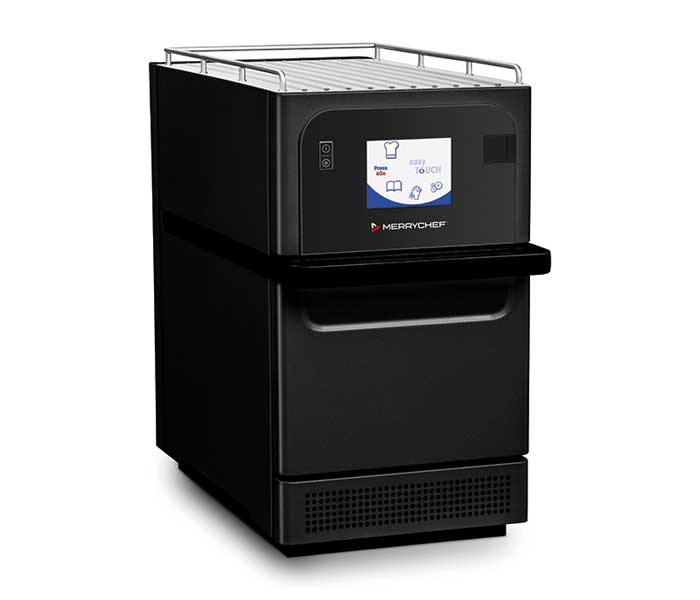

eikon® e2s Trend

W x D x H	14" x 233/8" x 253/8" 35.6 cm x 59.4 cm x 64.5 cm
Weight	134.7 lb 61.1 kg
Power Input Type	Electric
Primary Power Input	230 V x 50 Hz x 1 PH
Certifications

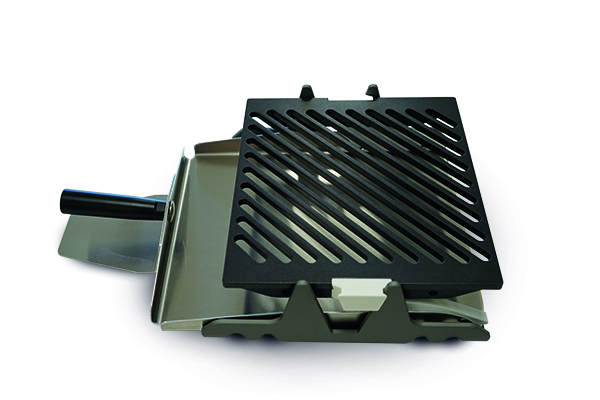

Low Opening Panini Press with Flat Bottom Plate

Available for Merrychef eikon e2s models purchased after 2019

Part Number: PSR160
Dimensions: W: 302.2mm, Opening H: 70.5mm, Closing H: 13.5mm

High Opening Panini Press with Flat Bottom Plate

Available for Merrychef eikon e2s models purchased after 2019

Part Number: PSR162
Dimensions: W: 302.2mm, Opening H:79mm, Closing H: 30mm

High Opening Panini Press with Grilled Bottom Plate

Available for Merrychef eikon e2s models purchased after 2019

Part Number: PSR163
Dimensions: W: 302.2mm, Opening H:79mm, Closing H: 30mm
